SD1

SD1 has a new look! Starting September 2nd, 2024, customers will be receiving an updated version of the SD1 that has square LED apertures instead of the old round style. A small change, a big impact- 273% larger led apertures! We also moved the diffusers further away from the LEDs which helps create a more even glow with better color mixing. If you already own an SD1 and wish yours looked like this, hang tight! We will have an upgrade kit soon to retrofit your SD1!

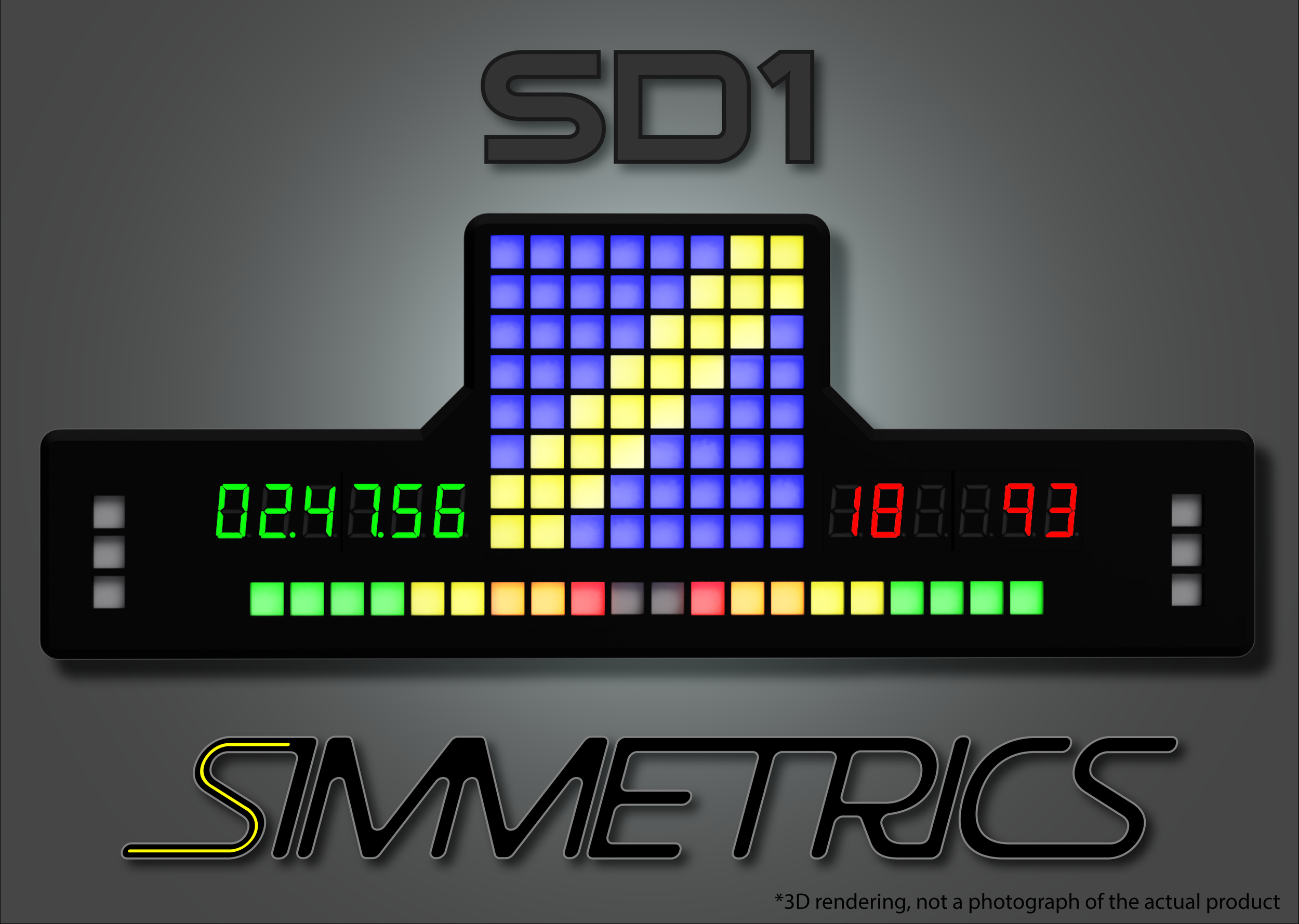

SD1 is a simple and sleek dashboard that displays the critical information you need for a podium finish. With SimHub software, endless customization options allow you to create a dash display that is perfect for your style of sim-racing.

Interchangeable mounting options allow for a clean and easy install on most popular wheelbases. The mounting interface can easily be swapped in the future if you upgrade your rig or require a new mounting solution (1 mount included, others sold separately). If the mount you need is not listed, please contact us here and we will try to design what you need.

Features-

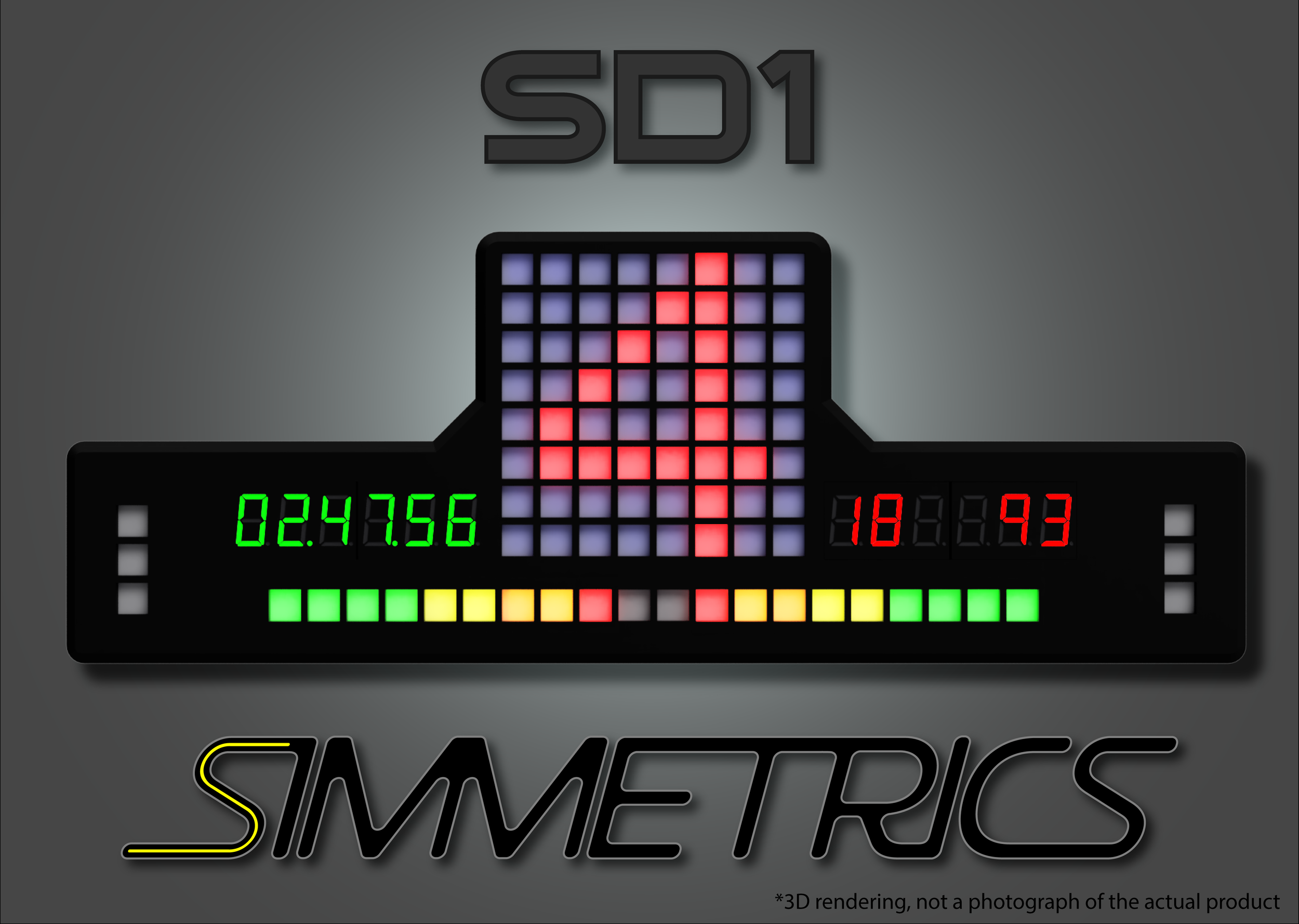

• 20 segment tachometer (RGB LEDs)

• 64 LED matrix (RGB - flag/gear display)

• Triple LED side indicators (RGB - blinker/spotter)

• 2 six-digit number displays (White, Red, Blue, Green, Yellow)

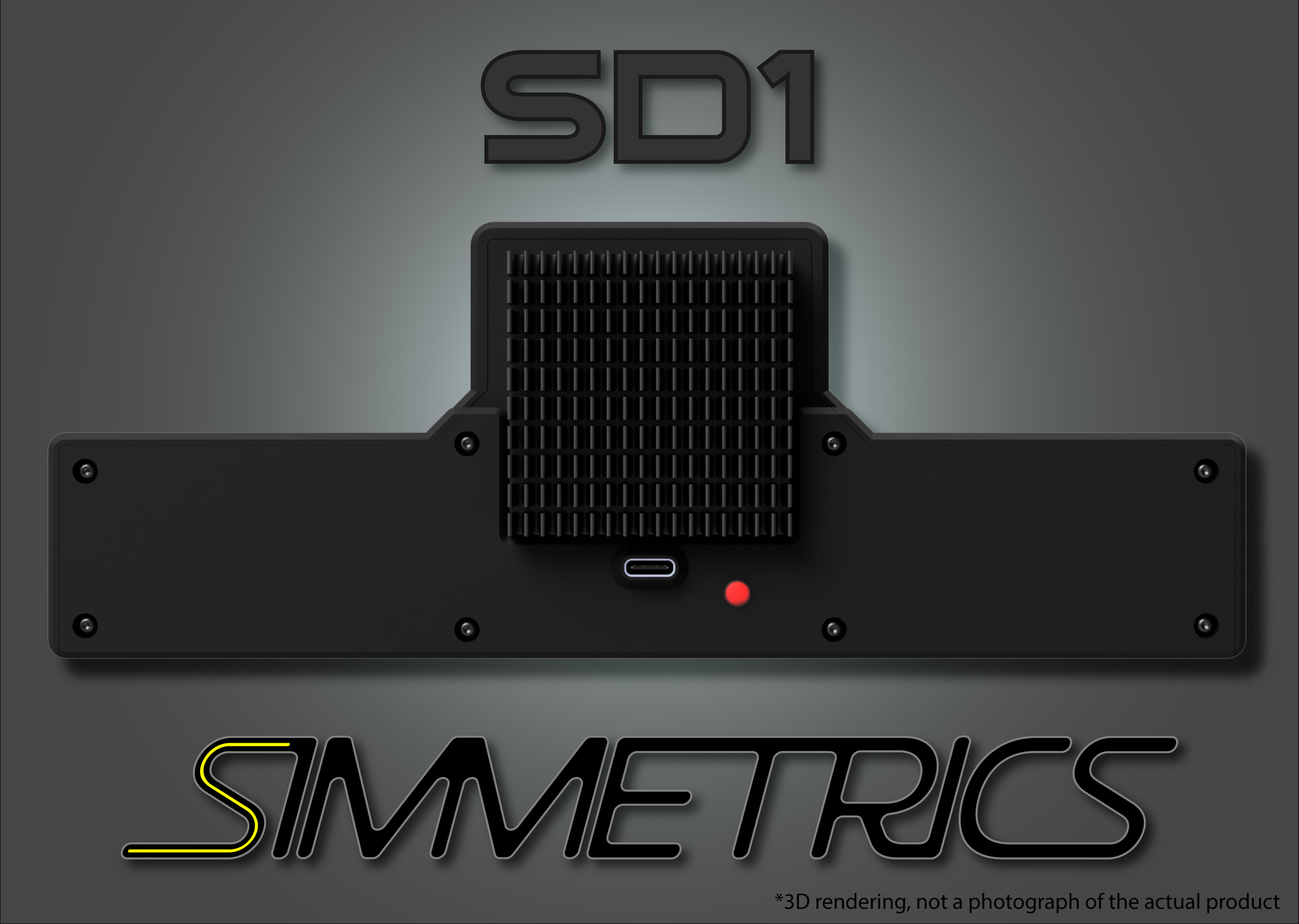

• USB type C - 3A max (Premium Anker USB-C cable INCLUDED)

• Black 3D-printed housing with carbon fiber weave pattern on front faces

• PC ONLY - PS/XBOX NOT supported

• Hard-mounting solutions available for the following wheelbases(1 included with purchase):

  • Fanatec CSL-DD

  • Fanatec Clubsport DD(+)

  • Fanatec DD1/DD2

  • Moza R5/R9/R12 (screws included)

  • Simagic Alpha

  • Simucube 2 Sport/Pro/Ultimate

  • VRS Pro

  • Flat base with adhesive pad (universal)

  • Two M3 threaded hole options to design your own mount

IMPORTANT! Read before ordering- If your wheelbase is front-mounted to your rig(Simagic, Simucube, etc.), you probably need a height extension. Many front-mounting solutions use a mounting plate that is larger than the wheelbase and the SD1 is designed to sit flush on the top edge of the wheelbase. If your wheelbase mounting plate extends above the top front edge of the wheelbase, measure the additional height, from the top edge of the wheelbase to the top edge of the mounting plate, and choose the next highest mount extension in the pop-up form when you add to cart. For example, if you measure 17.4mm, choose the 20mm height extension. If you are unsure, you can always send us a message at info@simmetricsracing.comfor help finding the right fit for your setup.

*SimHub software required for use of this product
